Product

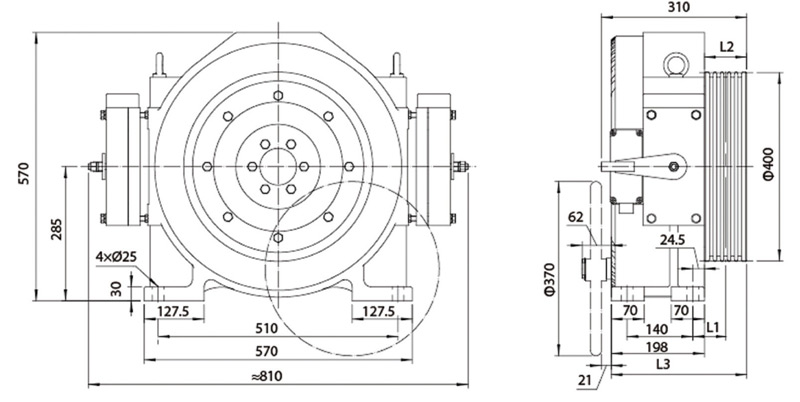

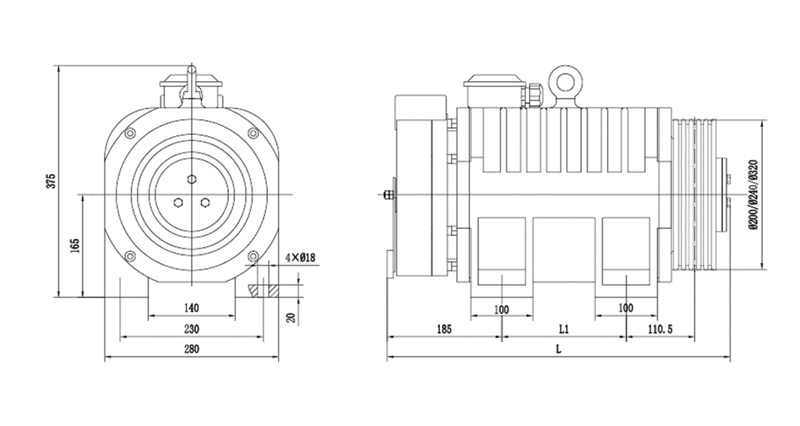

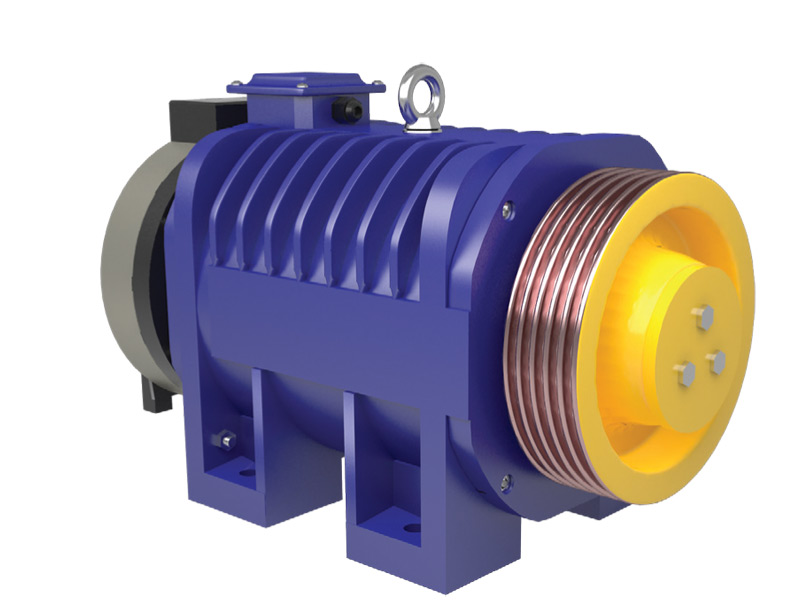

Gearless Traction Machines

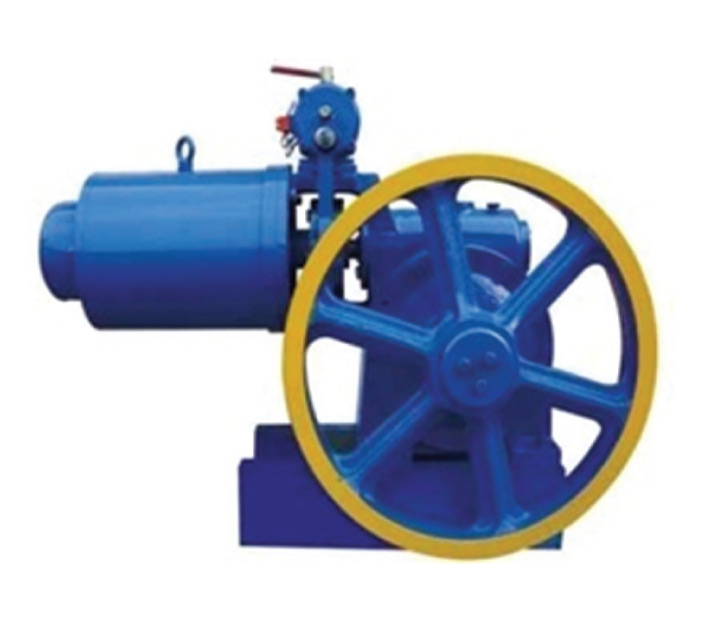

Geared Traction Machines

Specification Details

Name Model Loading Speed Roping Brake Power Power Sheave
Elevator Traction Machine MAIKA-HW135 408 kgs 1.0m/s 1:1 110 380V 4.0 KW 520mm*13mm*3
Elevator Traction Machine MAIKA-HW135 544kg 1.0m/s 1:1 110V 380V 5.5KW 520mm*13mm*3
Elevator Traction Machine MAIKA-HW135 680kg 1.0m/s 1:1 110V 380V 6.4KW 520mm*13mm*3
Elevator Traction Machine MAIKA-J210F 1500kg 0.5m/s 2:1 110V 380V 7.5KW 550mm*13mm*5
Elevator Traction Machine MAIKA-J210F 2000kg 0.5m/s 2:1 110V 380V 6.4KW 550mm*13mm*5

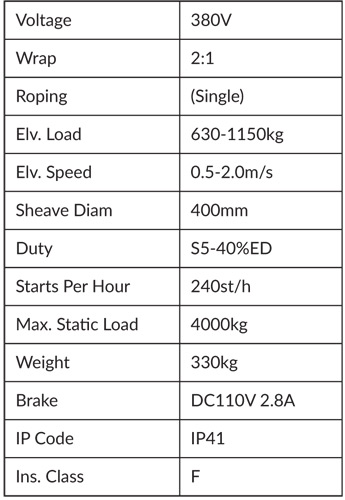

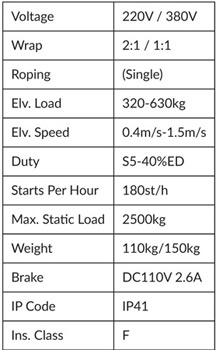

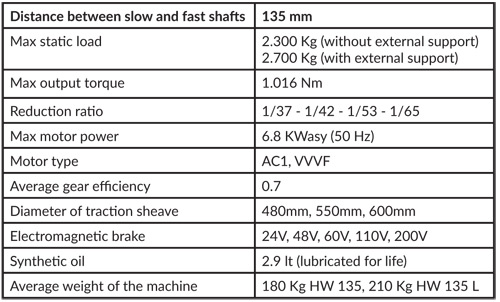

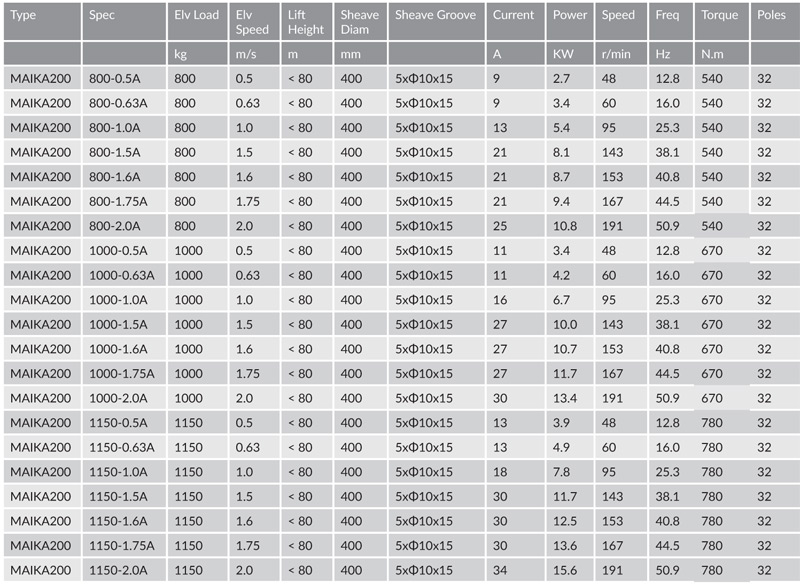

Technical Data

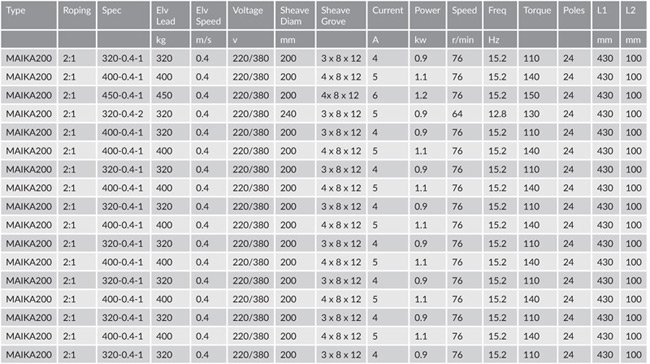

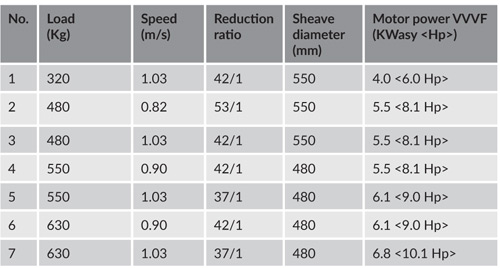

Useful load vs. speed Table - Examples (50 hz - 1500 rpm)

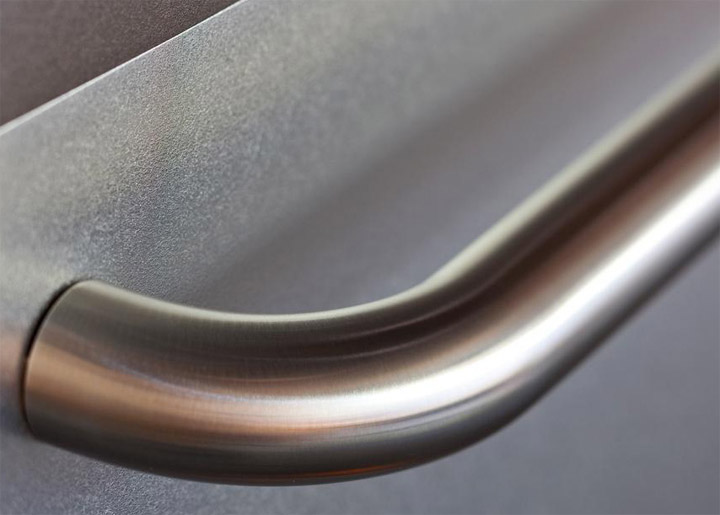

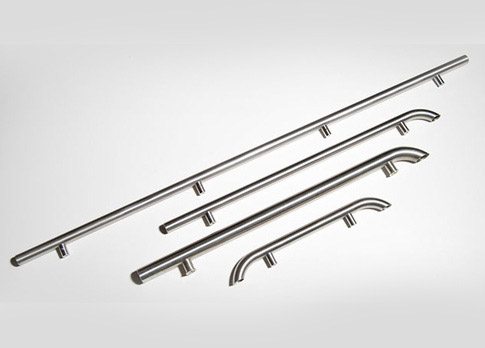

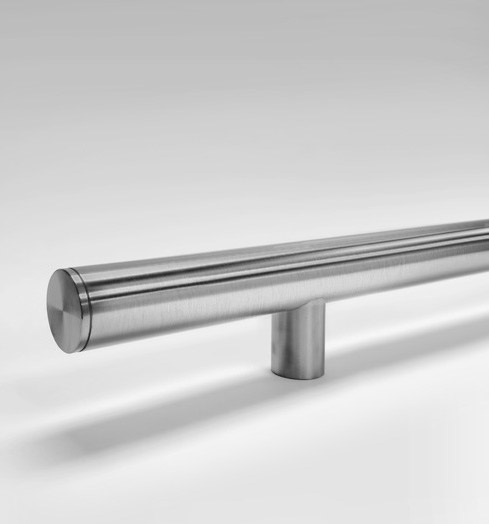

Hand Rails

Elegant Hand Rails at Effective Prices.

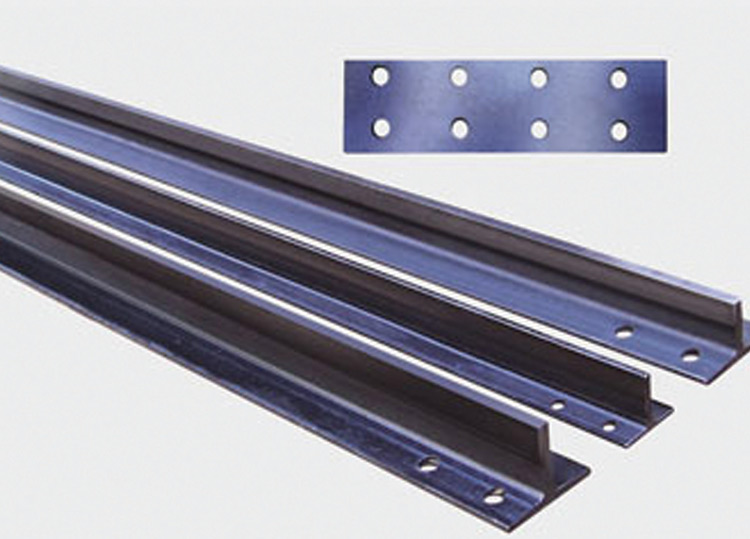

Guide Rails

Guide Rails ensure smoother travel of the moving car. We offer both car and counter weight rails of different dimensions along with Fishplates.

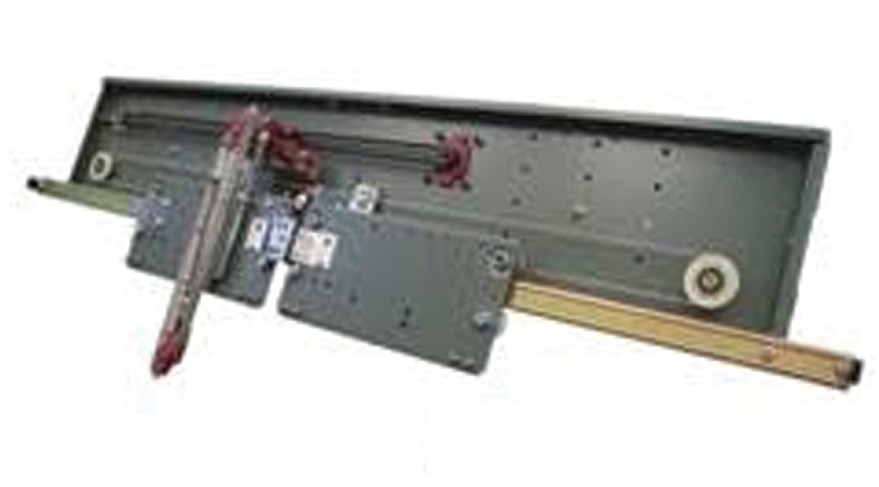

Header

Modern Steel Industries in a Steel Service Center established in 1993, the total area of the plant cover around 6 acres which employs around 250 labours and 25 staffs.The total valuation of the plant is around 150 crores.

S.No Header Type Header Length (in mm) Sill Length (in mm) Accessories
1 600 Center opening car 1295 1200 Door mounting hardware, car sill and car header fixing bracket
2 600 Center opening landing 1300 1200 Door mounting hardware and landing sill
3 700 Center opening car 1395 1400 Door mounting hardware , car sill and car header fixing bracket
4 700 Center opening landing 1500 1400 Door mounting hardware and landing sill
5 800 Center opening car 1495 1600 Door mounting hardware , car sill and car header fixing bracket
6 800 Center opening landing 1700 1600 Door mounting hardware and landing sill

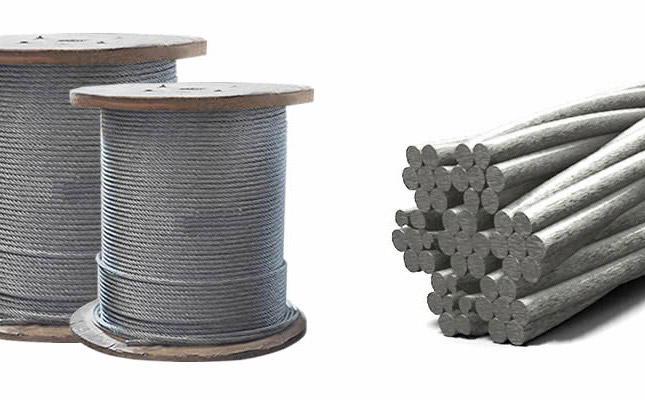

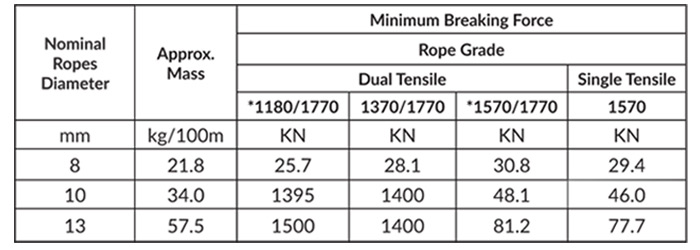

Wire Rope

We supply the best elevator ropes that is proven in the field. Available in large quantities and retail at most competitive prices.

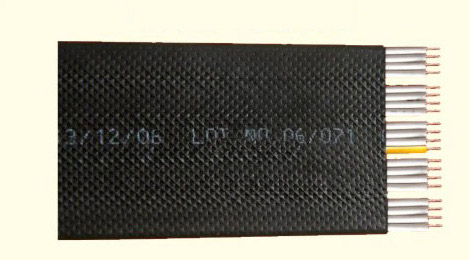

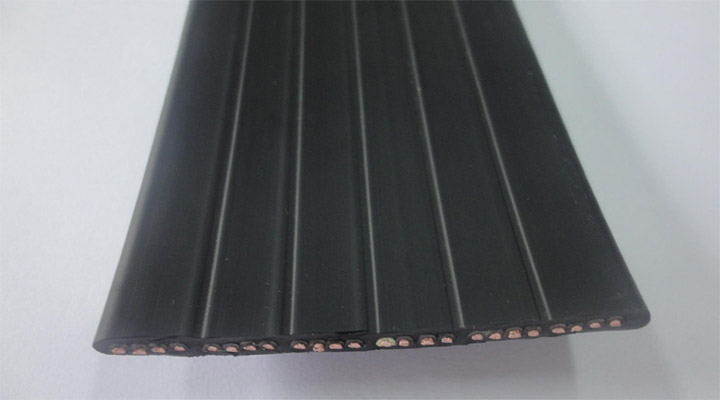

Travelling cable

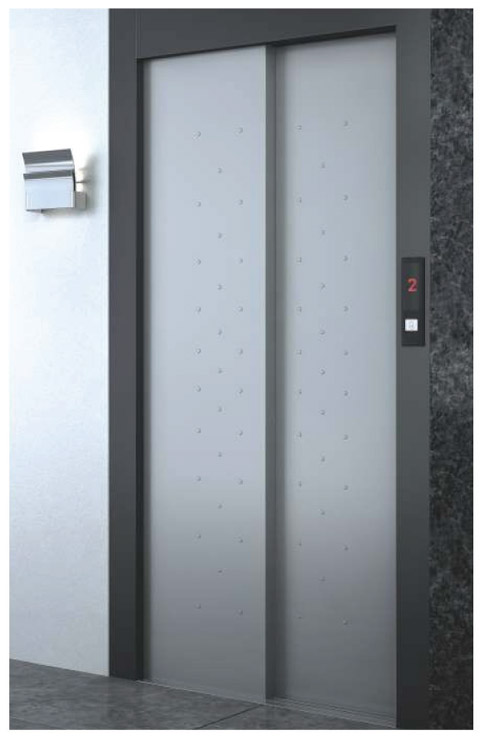

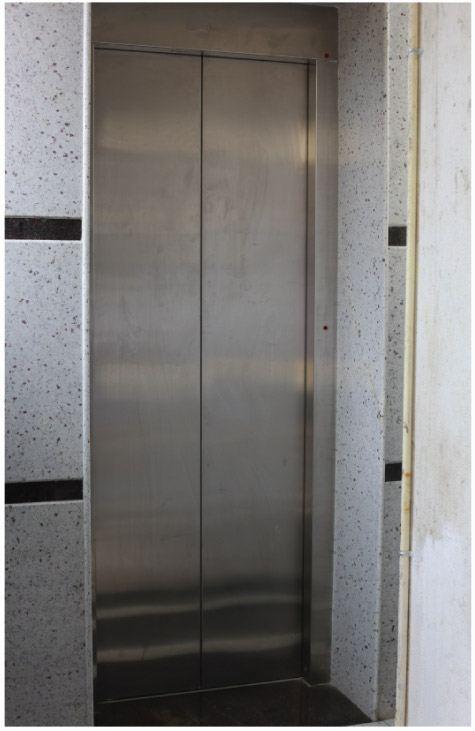

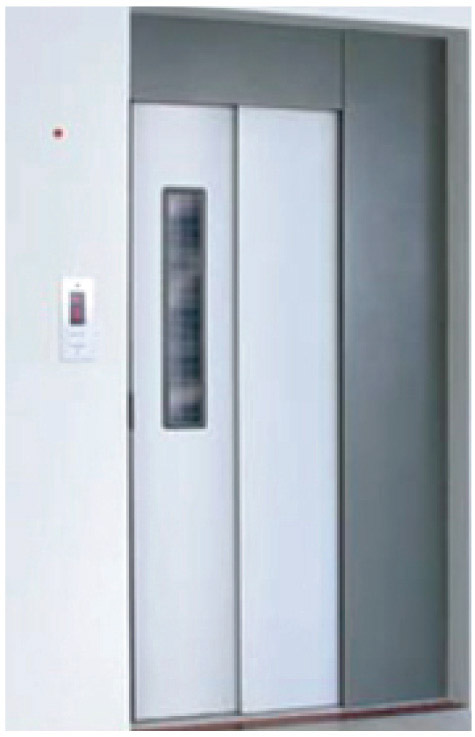

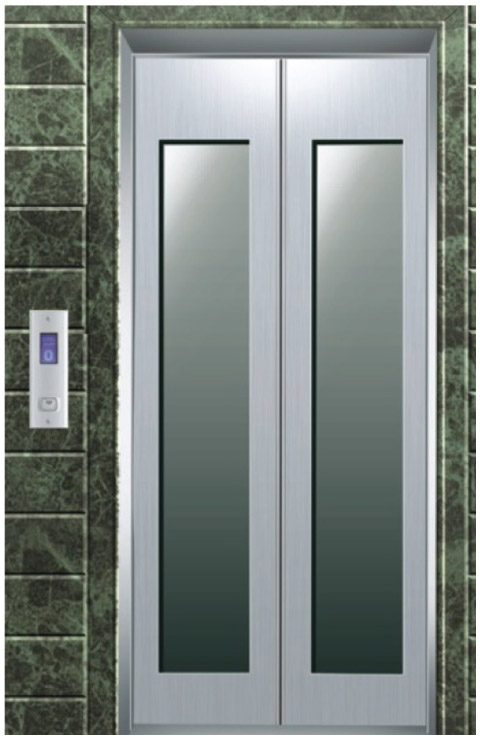

Doors

We offer Automatic and Manual Telescopic Doors for elevators. These doors are made by high quality MS and SS and our manufacturing technology is of international quality standards.

Control Panel

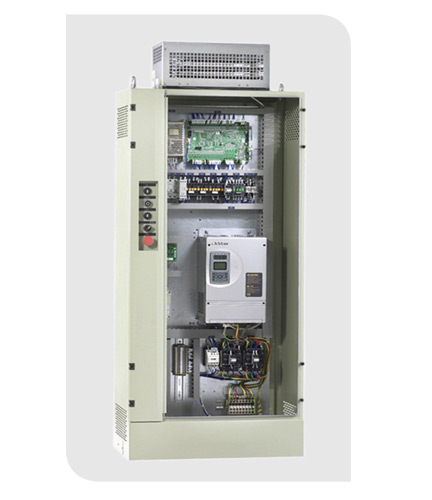

Vvvf Controller Assembly

We offer Automatic and Manual Telescopic Doors for elevators. These doors are made by high quality MS and SS and our manufacturing technology is of international quality standards.

    Technical description

  • Power Supply: AC380V~460V, 50/60Hz, 3 phase
  • Power Range: 5.5kW-22KW
  • Rated Speed: < 3.5m/s
  • Main Controller: STEP SM-01-F5021 Board
  • Safety Standard: GB7588/EN-81
  • Landing Mode: Direct Landing
  • Accuracy of Leveling: < + 3mm
  • Environment Temperature: -10 C ~ 45 C
  • Cabinet Color: Dark Gray or Customized

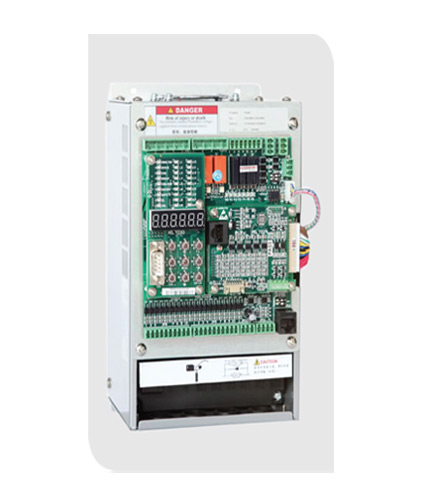

Integrated Drive Controller

    Technical description

  • Power Supply: AC380V~460V, 50/60Hz, 3 phase
  • Power Range: 5.5kW-22KW
  • Rated Speed: 1.75m/s
  • Main Controller: AS360
  • Safety Standard: GB7588/EN-81
  • Landing Mode: Direct Landing
  • Accuracy of Leveling: < + 3mm
  • Environment Temperature: -10 C ~ 45 C
  • Cabinet Color: Dark Gray or Customized
